| Data / ML |
▴ Algorithm design |
|
▴ Classifier training |
|
▴ Python MQTT server |
|
▴ Data transform pipeline |
|
▴ Feature extraction / definition |
|
▴ Coach / health-assistant models (e.g. Oura, Whoop) |
|
▴ Cloud algorithm + model deployment |
|
▴ > 20 supported exercises |
|
▴ < 20ms detection latency |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

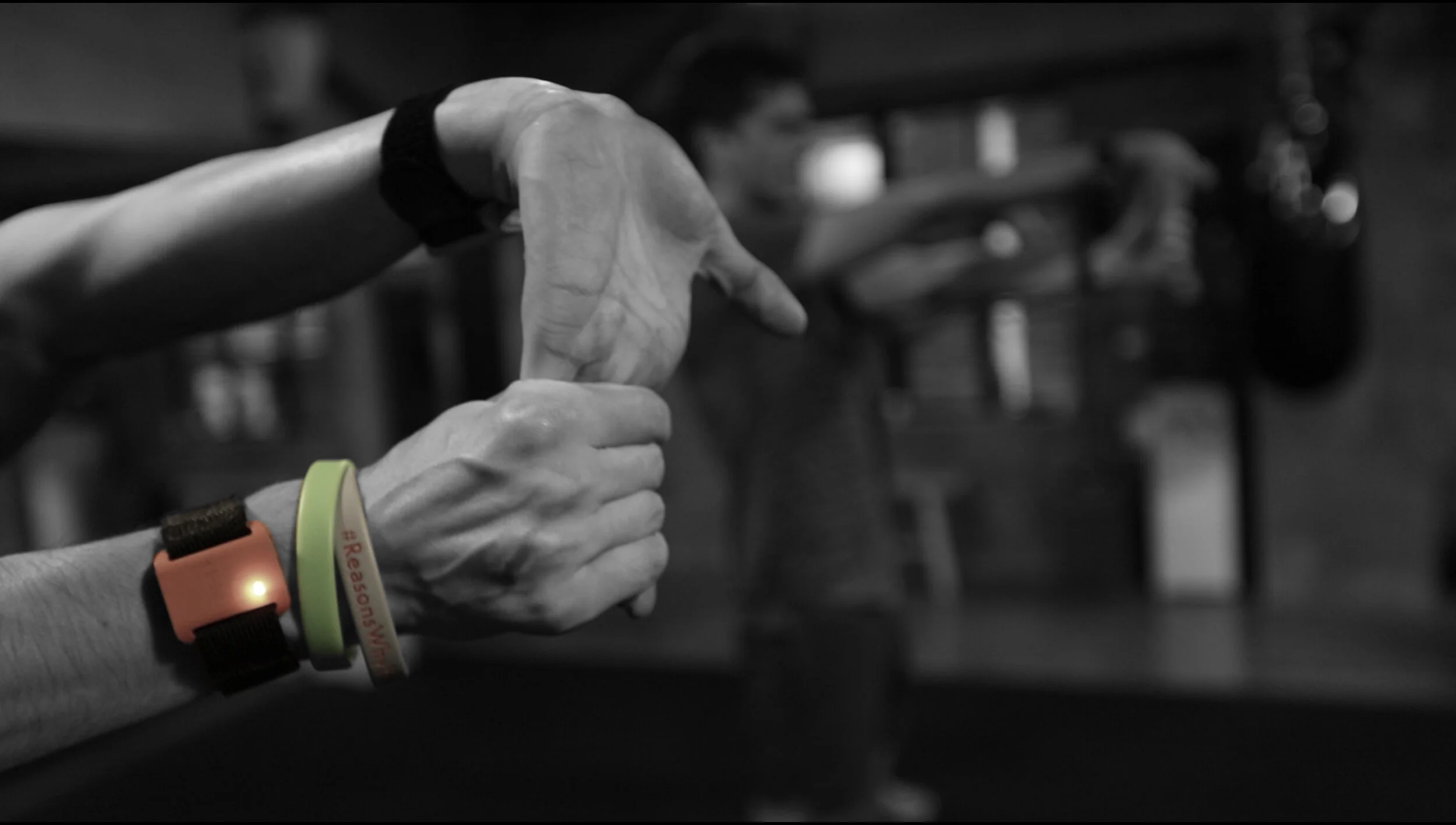

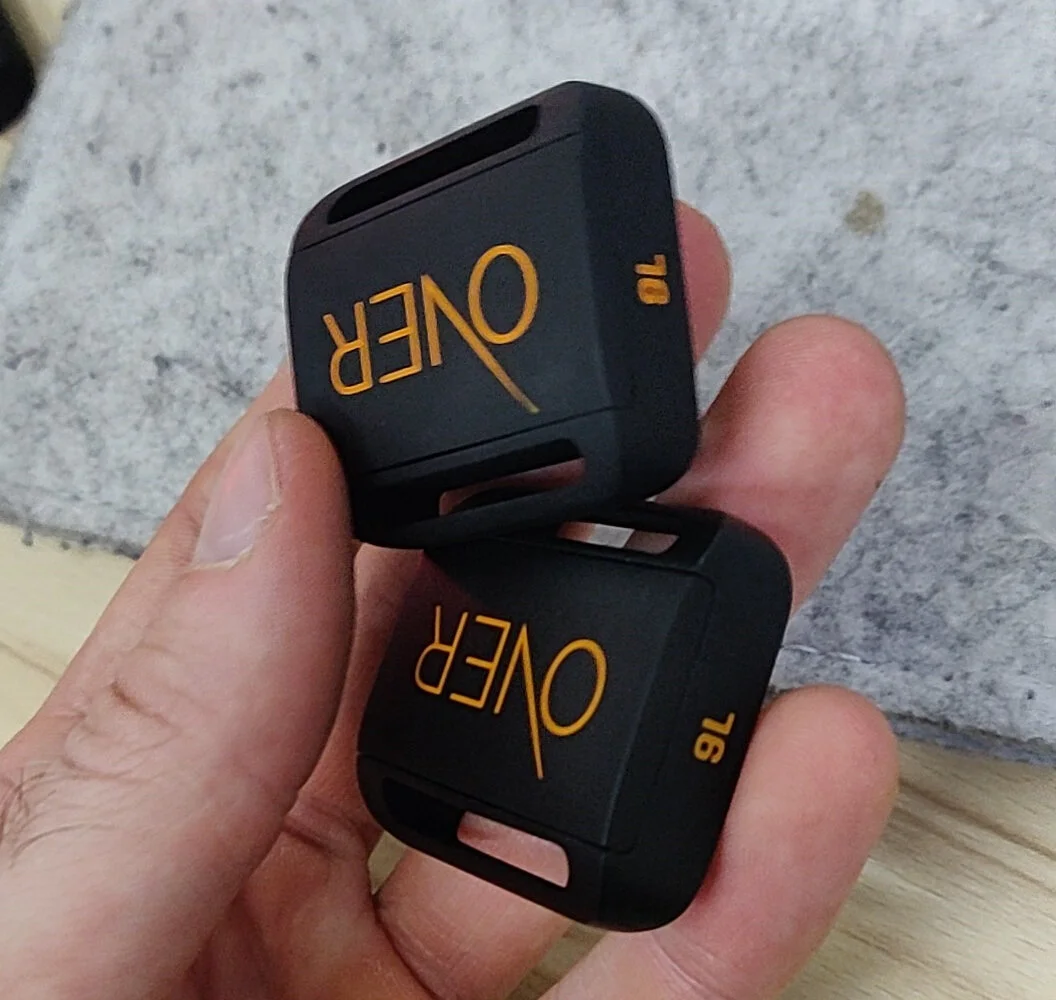

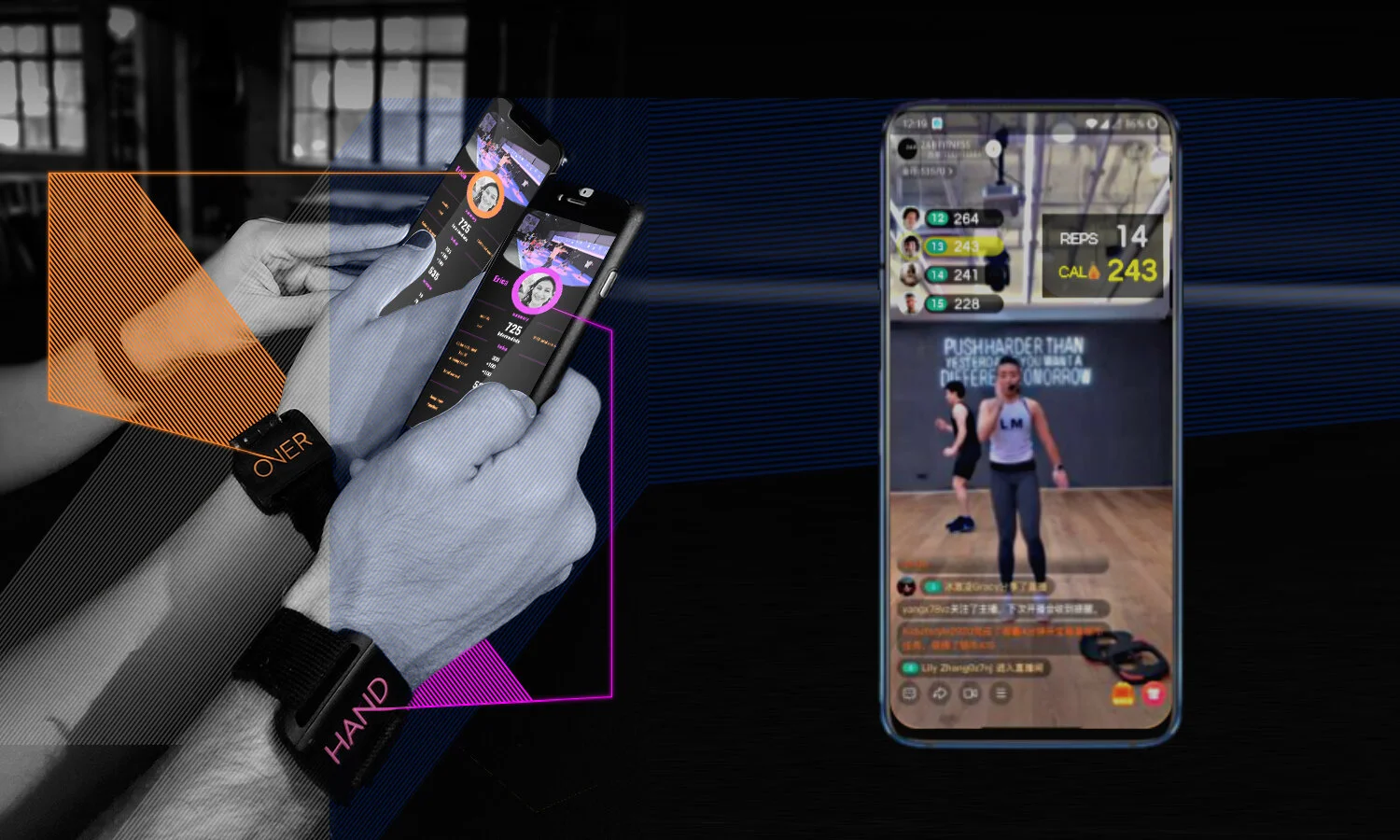

| Overhand Tracker |

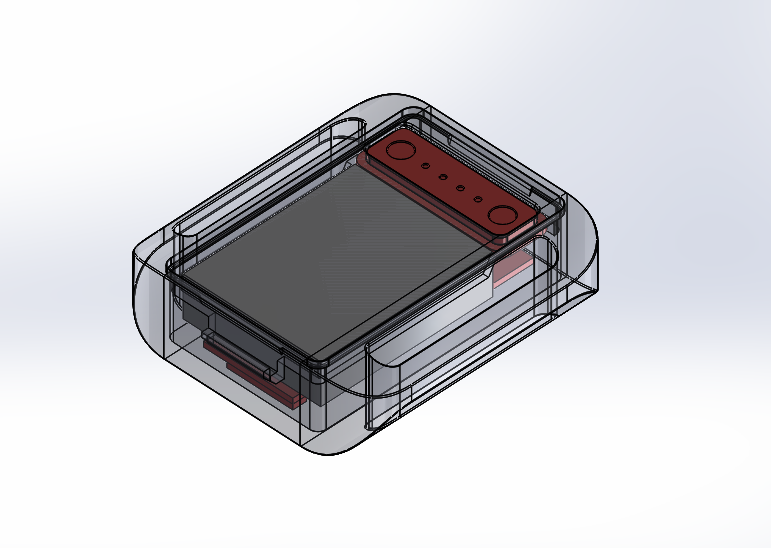

▴ Hardware architecture |
|
▴ PCB schematic / routing (21 revs) |
|
▴ 6-layer PCB design |
|
▴ SMT prototyping |
|
▴ RF antenna design + tuning |
|

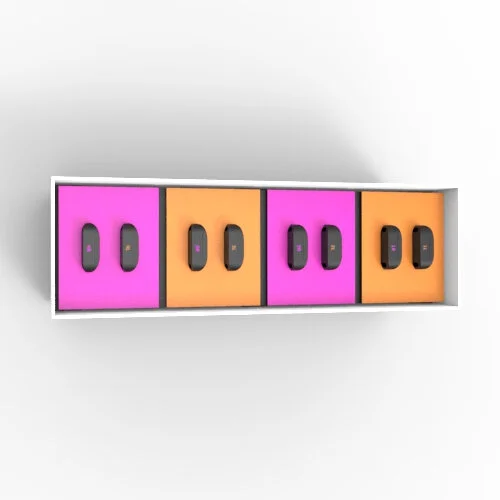

▴ Charger schematic / routing |
|
▴ Waterproof magnetic connectors |
|
▴ Power / cost optimization |
|
▴ Pilot production (200 units) |
|

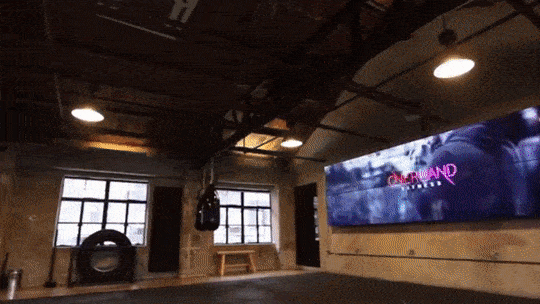

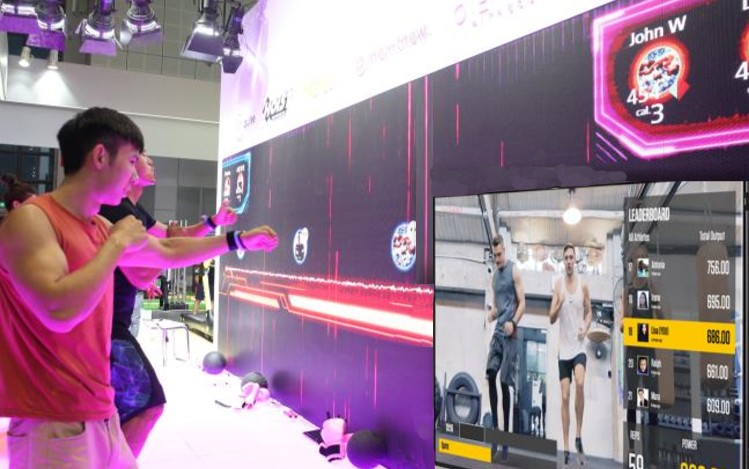

▴ Gym / Kiosk / Exhibit installations |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Firmware |
▴ AVR sensor fusion |
|
▴ ESP MQTT over WiFi |
|
▴ 1kHz ODR |
|
▴ 18kbps TX rate |
|
▴ < 10ms RX latency |
|
▴ > 20m range |
|
▴ > 40 simultaneous units |
|
|
